PRO2000 Plastic Bag Washing System

PRO2000 Plastic Bag Washing System

INTRODUCTION

Ability

Thanks to innovative washing technology and high quality performance. ECO SERIES Plastic Washing Line removes the most difficult contaminants from PP/ PE/ PS/ ABS plastic materials. Cleans post consumer film, agricultural film, Rigid bottle/ drum, Battery case, WEEE plastic and even heavily contaminated woven bag fibre material. Provides almost 100% purity washing results.

Feeding units

High throughput;

Build-in hydraulic ram;

variable faster ram movement;

Less space occupied than traditional shredders with horizontal rams;

Enclosed cutting chamber to prevent materials flying out;

Screen plates are made of wear-resistant steel, quick and easy maintenance.

Belt conveyor (Heavy duty)

Reducer type: Gear Reducer Motor, China top quality

built in sturdy frame construction in heavy duty version

side walls to avoid spilling of the feeding material

Screw loader

Optional shredder and crusher

Washing units

Low water consumption, 95% recycled-release;

Simple water treatment;

High-quality separation;

Pre-sorting material( steel, sands);

Active material washing;

Automatic cleaning function;

Water recycling system online;

Intelligent control system;

Heavy material separator( double-valve control with collection tank);

Modular design and intergrated installation;

Easy exchange of elements;

Heavy duty washing, separation of different specific densities material;

Longer lifetime of downstream machines;

Dust separation devices.

Pre-washing machine

High-speed friction washer

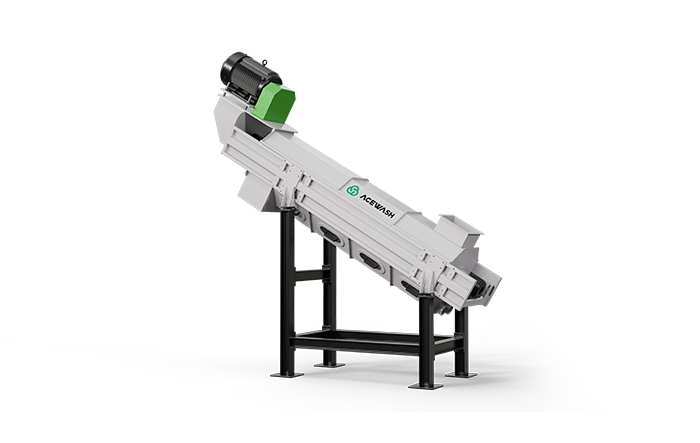

Friction washer

Floating tank

Dewatering units

Combines a cleaning centrifuge and thermomechanical drying in a single plant. This enables a clean, dry process that is easy on the material and produces consistently high end product quality;

Drying and cleaning in a single step;

Simple operations, low maintenance effort;

Automatic machine control;

Final moisture less than 7%.

Squzzer

Dewatering machine and pipeline dryer

Intelligent control system

Auto control system;

Auto warming system;

Control module system;

Data monitoring and analysis.

Final products

Clean flakes with moisture less than 7%

BASIC DATA OF WASHING SYSTEM
